American Tackle Co. MicroWave 30 Line Control System

$2.09

There are quality problems, free return and exchange

Fast, friendly, always here to help.

Free Shipping Worldwide

Free Shipping, Quality Goods

Incorporating award winning MicroWave Line Control Technology with Snagless frame designs, the MW30 guide system is a bold new take on Heavy Freshwater, Inshore, Surf, Carp and Light-Heavy Offshore rod guides. MicroWave 30 is the ultimate in fishing rod line management, improving both angler and rod performance.

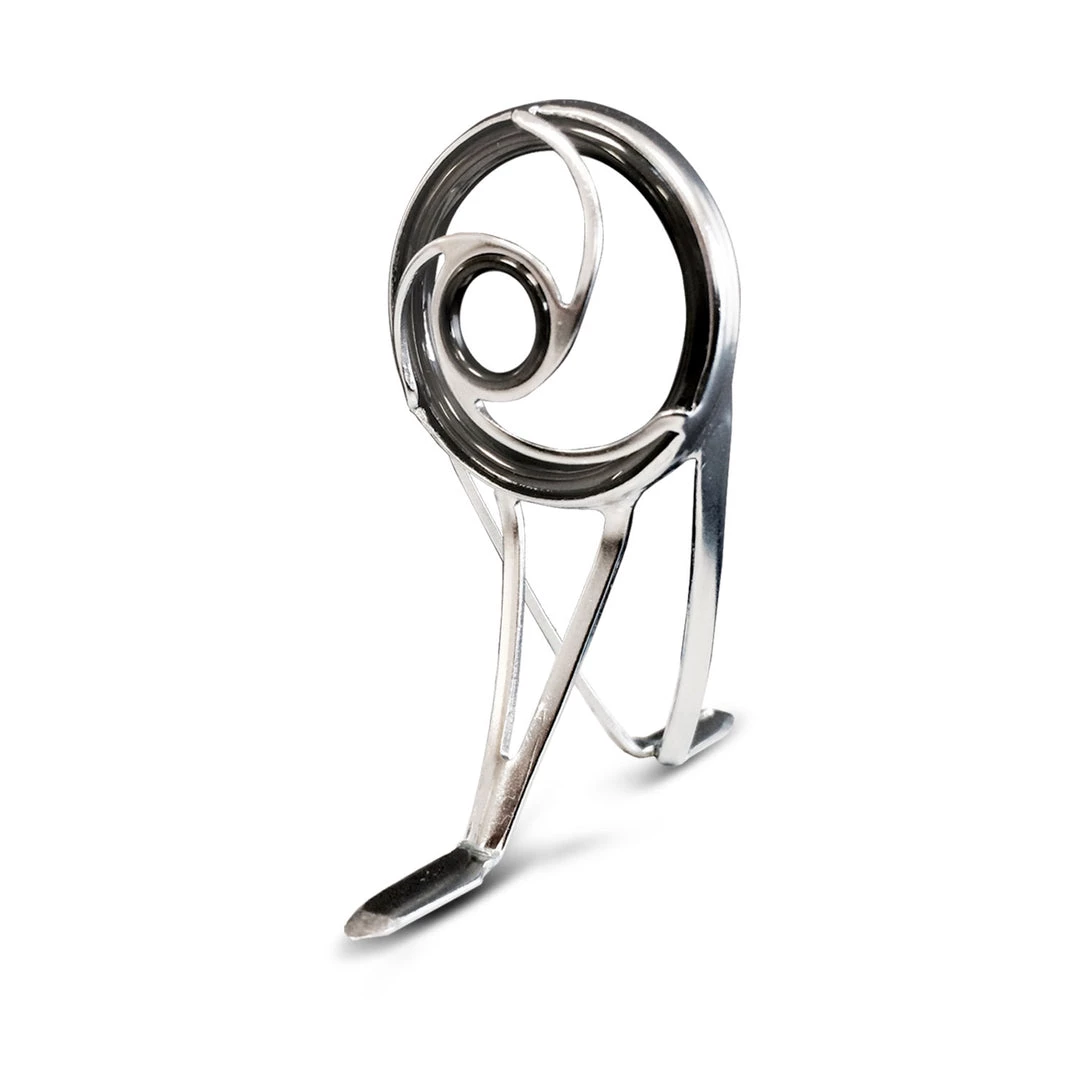

This system consists of a double foot designed 30/10mm stripping guide to a double foot 10mm transition guide onto 8mm single foot or 10mm double foot running guides.

Features:

Snagless design
Passes leader knots of all sizes
Single foot 8mm or double foot 10mm running guide options
Available with Duralite and Nanolite rings
Available in the Titanium TidalWave series

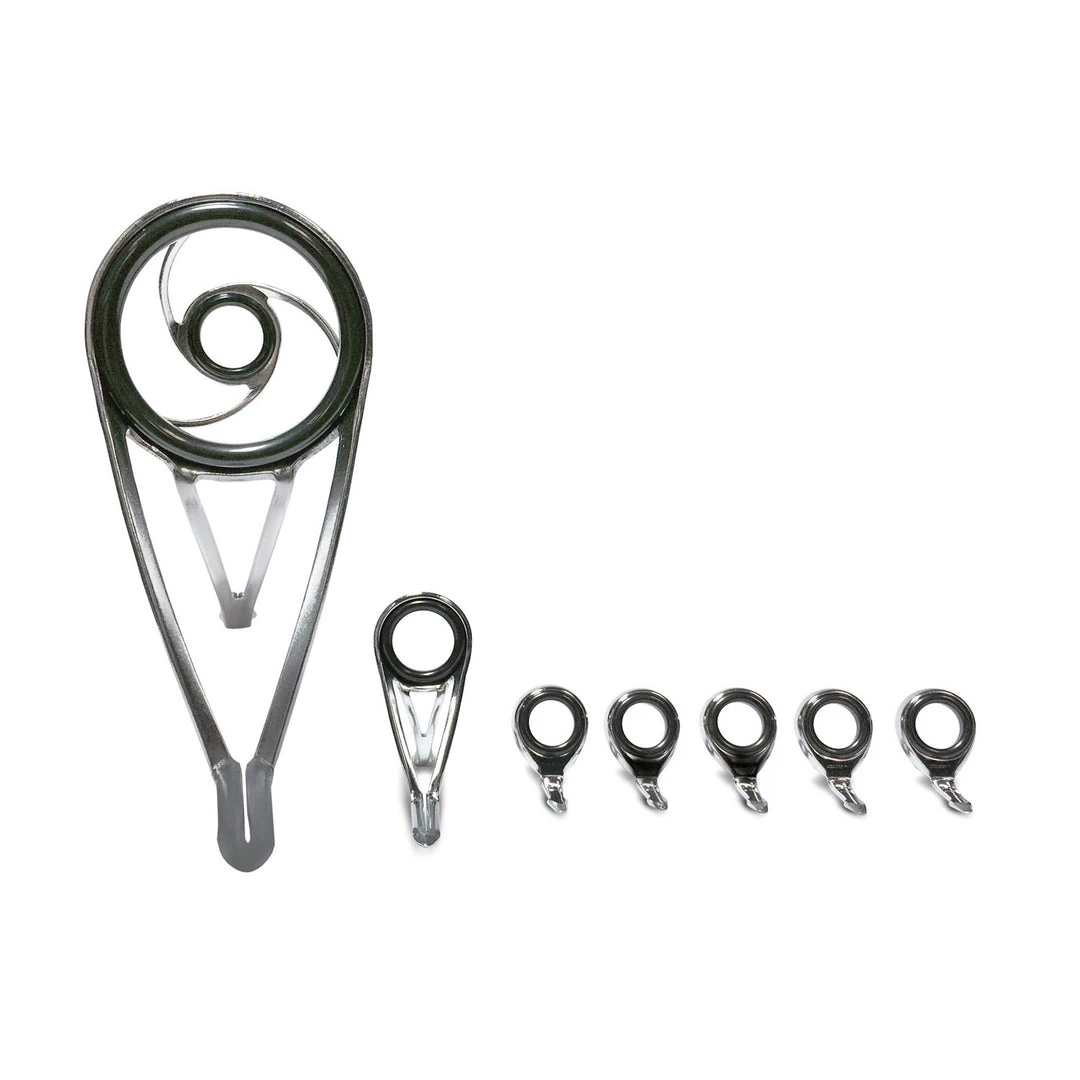

Set includes 1 stripper guide, 1 transition guide & 5 running guides

MW30 Guide Sets

MW30 – Single Foot Runners

Material	Black	Black Running	Chrome	Chrome Running	Gunsmoke	Gunsmoke Running	TidalWave	TidalWave Running
Nanolite	NBMW30-SET	NBMW30-8	NCMW30-SET	NCMW30-8	NGMW30-SET	NGMW30-8	NOIMW30-SET	NOIMW30-8
Duralite	DBMW30-SET	DBMW30-8	DCMW30-SET	DCMW30-8	DGMW30-SET	DGMW30-8	–	–

Stripper Size: 30/10 | Transition Size: 10 | Running Size: 8 | # of Guides in Set: 7

MW30 – Double Foot Runners

Material	Black	Black Running	Chrome	Chrome Running	Gunsmoke	Gunsmoke Running	TidalWave	TidalWave Running
Nanolite	NBMW30-SETDF	NBMW30-10DF	NCMW30-SETDF	NCMW30-10DF	NGMW30-SETDF	NGMW30-10DF	NOIMW30-SETDF	NOIMW30-10DF
Duralite	DBMW30-SETDF	DBMW30-10DF	DCMW30-SETDF	DCMW30-10DF	DGMW30-SETDF	DGMW30-10DF	–	–

Stripper Size: 30/10 | Transition Size: 10 | Running Size: 10 | # of Guides in Set: 7

MW30 Sizes & Specifications

How to measure MicroWave guide heights

Guide	Height A	Height B	Height C	Weight	Ring ID	Foot 1	Foot 2	Total Length
Duralite Ring
#30/10 Stripper	40.15 mm	45.75 mm	60.10 mm	11.00 gm	24.66 mm	17.00 mm	16.80 mm	67.00 mm
#10T Transition	12.75 mm	19.60 mm	22.20 mm	1.40 gm	7.36 mm	11.50 mm	10.30 mm	32.50 mm
#10DF Runner	6.95 mm	14.20 mm	16.40 mm	1.10 gm	7.36 mm	11.33 mm	9.85¬¨‚Ä† mm	29.40 mm
#8 Runner	4.85 mm	10.30 mm	11.40 mm	0.50 gm	5.58 mm	8.75 mm	N/A	14.35 mm
Nanolite Ring
#30/10 Stripper	38.45 mm	42.65 mm	61.50 mm	10.60 gm	25.15 mm	17.00 mm	16.80 mm	67.00 mm
#10T Transition	12.87 mm	19.60 mm	22.20 mm	1.40 gm	7.75 mm	11.50 mm	10.30 mm	32.50 mm
#10DF Runner	6.95 mm	14.40 mm	16.40 mm	1.00 gm	7.75 mm	11.33 mm	9.85¬¨‚Ä† mm	29.40 mm
#8 Runner	4.48 mm	9.90 mm	11.40 mm	0.50 gm	5.85 mm	8.75 mm	N/A	14.35 mm
Titanium
#30/10 Stripper	38.45 mm	42.65 mm	61.50 mm	10.50 gm	25.15 mm	17.00 mm	16.80 mm	67.00 mm
#10T Transition	12.87 mm	19.60 mm	22.20 mm	0.80 gm	7.75 mm	11.50 mm	10.30 mm	32.50 mm
#10DF Runner	6.95 mm	14.40 mm	16.40 mm	0.60 gm	7.75 mm	11.33 mm	9.85 mm	29.40 mm
#8 Runner	4.48 mm	9.90 mm	11.40 mm	0.30 gm	5.85 mm	8.75 mm	N/A	14.35 mm

Measurement Key

Height A: Bottom of the foot to bottom of the ring ID

Height B: Bottom of the foot to top of ring ID

Height C: Total guide height

Color	Black, Chrome, Gunsmoke, TiON
Ring Type	Duralite, Nanolite
Size	#8 Single-Foot Runner, Set with Single-Foot Runners, Set with Double-Foot Runners, #10 Double-Foot Runner
