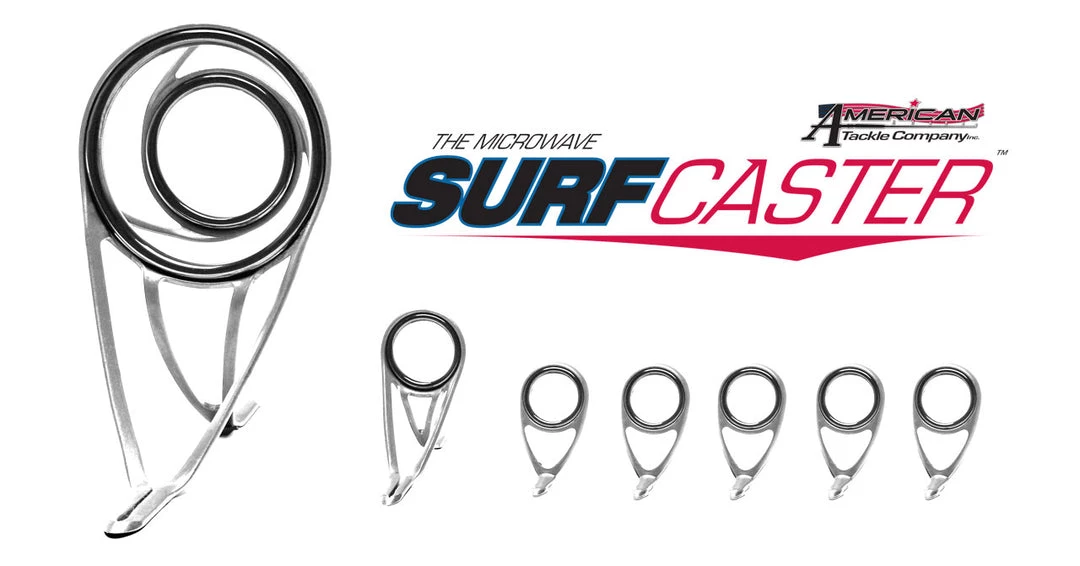

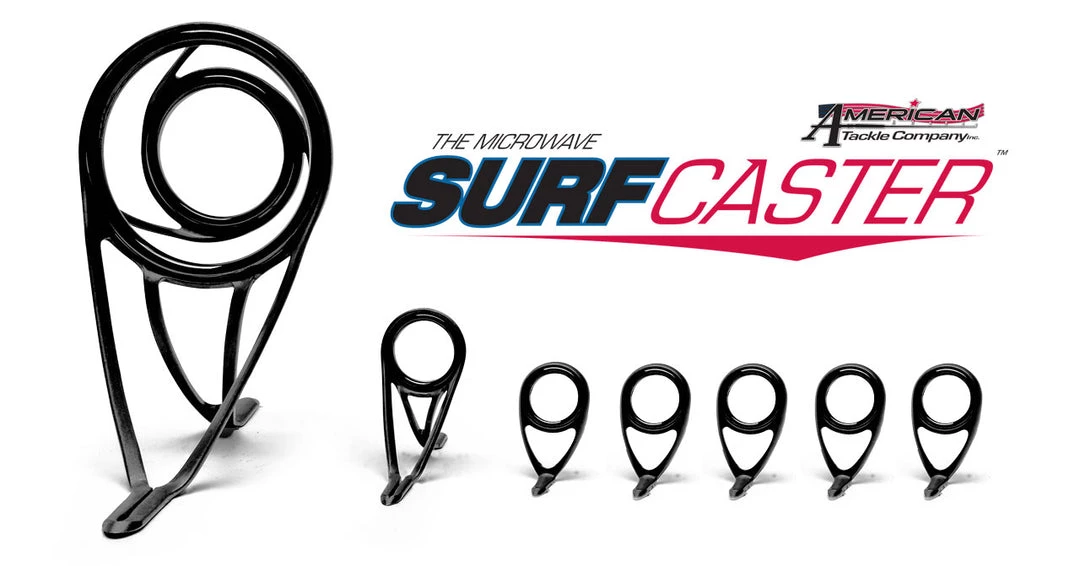

MicroWave™ Carp/Surf Caster Guide Set

Introducing the MicroWave “Carp Caster” edition by American Tackle Company. This new development uses the MicroWave Line Control technology specifically designed to effectively and efficiently cast all high performance carp and surf casting rods. This complete set of 8 guides includes a 50/30mm ring stripping guide, 16mm transition guide combined with 12mm single foot design running guides allowing maximum castability using all monofilament, fluorocarbon and braided fishing lines.

This guide system is designed to cast all applicable lengths of rods, rod powers, reel sizes, lure weights with all lines; Monofilament, fluorocarbon and braided lines.

The 50/30 allows unrestricted capture of line from the reel and maximizes line control without inhibiting line flow. Speed will be maintained and friction reduced through a quick graduated reduction allowing greater efficiency using stiffer lines.

MicroWave vs. Standard 'Cone of Flight' Guides

American Tackle Co. MicroWave Carp & Surf Caster Guides Components -Fishing Gear SALE microwave surf caster

Sold as Complete Sets

Stripping Guide	Transition Guide	Running Guides
50/30 mm	16mm	12mm (x6)

To order additional running guides for longer rods, please choose #12.

MicroWave™ Surf Caster Features

Smoother controlled casting
Improves blank/rod performance
Less energy to cast
Casts all line configurations
Improved distance
Improved targeting
Universal carp/surf applications
Reduced guide weight
Improved rod balance
Reduced guide foot print on Blank

MW50 Sizes & Specifications

Measurement Key:

Height A:¬¨‚Ä† Bottom of the foot to bottom of the ring ID

Height B:¬¨‚Ä† Bottom of the foot to top of ring ID

Height C:¬¨‚Ä† Total guide height

Guide	Height A	Height B	Height C	Weight	Ring ID	Foot 1	Foot 2	Total Length
Duralite Ring

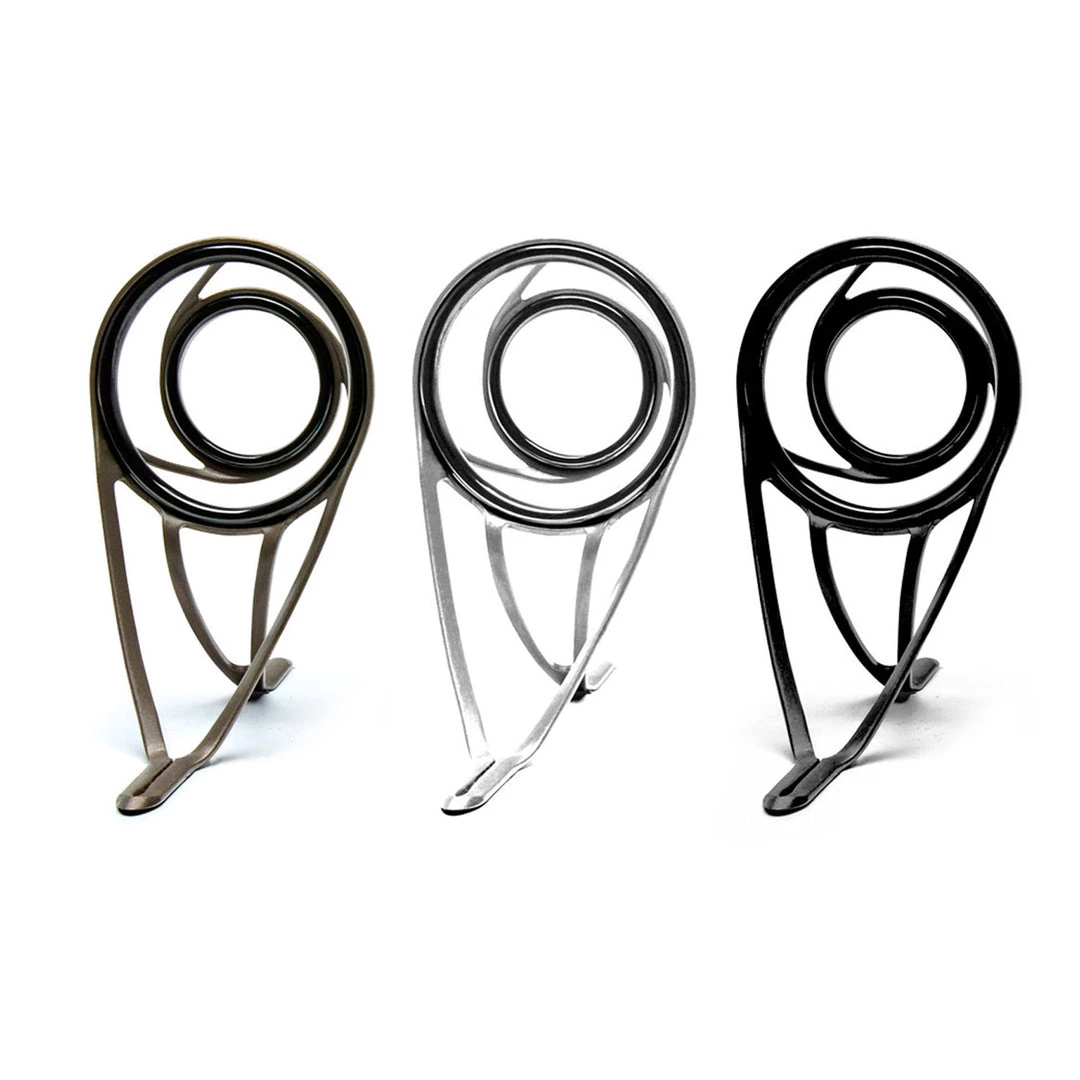

#50/30 Stripper	50.00 mm	73.50 mm	87.23 mm	30.70 gm	40.06 mm	20.55 mm	22.12 mm	86.46 mm
#16 Transition	19.00 mm	29.06 mm	32.52 mm	3.40 gm	11.14 mm	11.00 mm	11.50 mm	42.30 mm
#12 Runner	11.80 mm	19.20 mm	21.46 mm	1.50 gm	8.79 mm	10.58 mm	N/A	19.90 mm
Nanolite Ring
#50/30 Stripper	50.15 mm	73.90 mm	87.23 mm	28.00 gm	41.60 mm	20.55 mm	22.12 mm	86.46 mm
#16 Transition	18.75 mm	29.52 mm	32.52 mm	3.20 gm	11.55 mm	11.00 mm	11.50 mm	42.30 mm
#12 Runner	11.20 mm	19.60 mm	21.46 mm	1.40 gm	9.20 mm	10.58 mm	N/A	19.90 mm
