American Tackle Co. MicroWave25 Line Control System Components

Original price was: $42.88.Current price is: $30.44.

There are quality problems, free return and exchange

Fast, friendly, always here to help.

Free Shipping Worldwide

Free Shipping, Quality Goods

The MW25 guide system is the most comprehensive set of MicroWave guides yet. Specifically designed to cast heavier braided, monofilament, and fluorocarbon fishing lines. Can be used with standard light rod applications but ideal for use on inshore, nearshore, or offshore rods as well as on longer rods or with larger reel sizes.

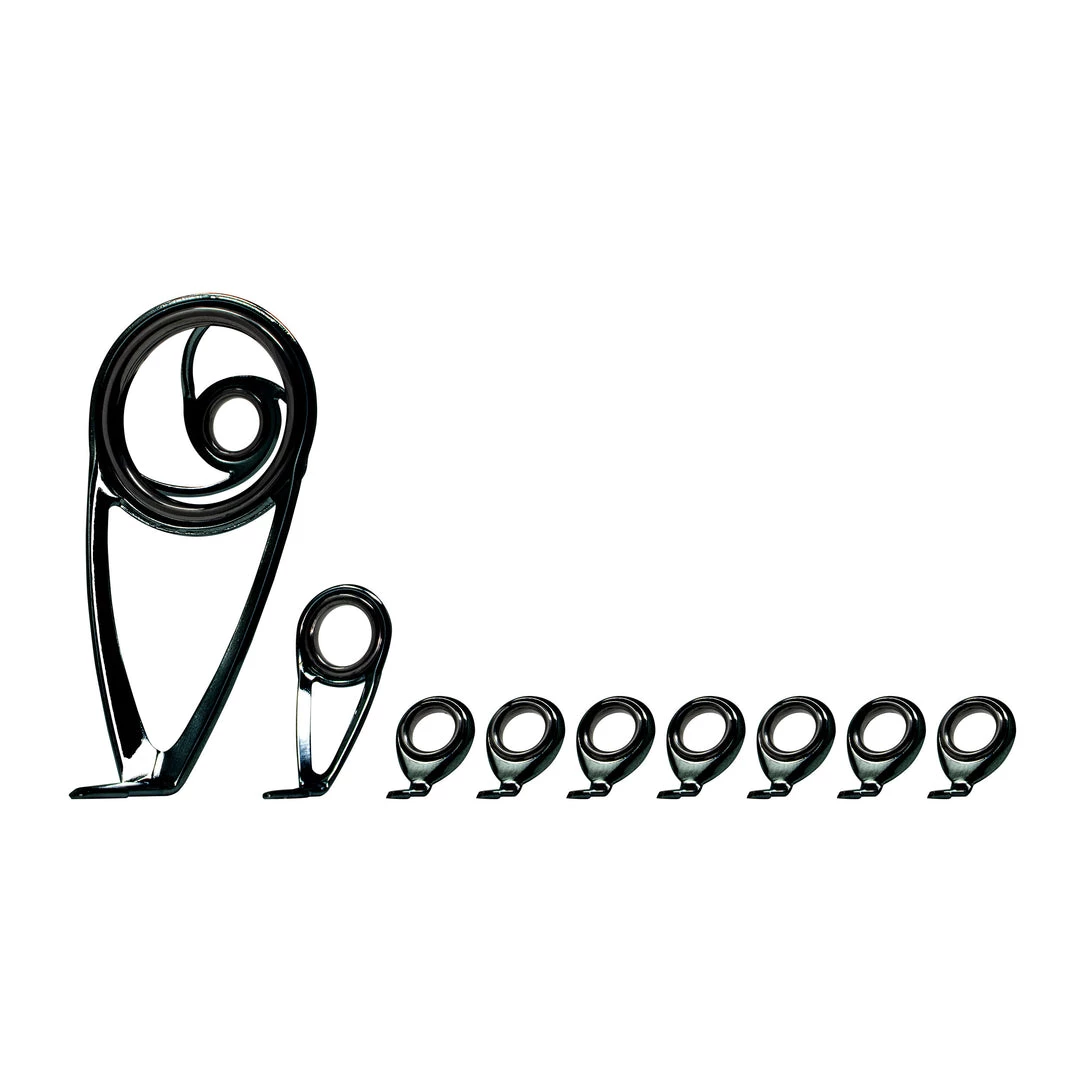

Complete set includes 9 guides in the following layout: 25/8 – 8T – 6 – 6 – 6 – 6 – 6 – 6 – 6.

Features & Benefits

Patented Award Winning Line Control Technology
Increased strength and material gauge
Vector-angle crease for increased rigidity
Snagless frame design
High ring location
25mm primary ring and 8mm secondary ring stripper guide
Utilizes 6mm running guides for passing large leader knots
Strong 316SS frames available w/Nanolite and Duralite rings
Available in Chrome, TiON Titanium or Black Diamond finishes

Specifications

MW25 Line Control System Specifications Chart
ITEM	TYPE	RING MATERIAL	HEIGHT A	HEIGHT B	HEIGHT C	WEIGHT	RING I.D.	FOOT LENGTH

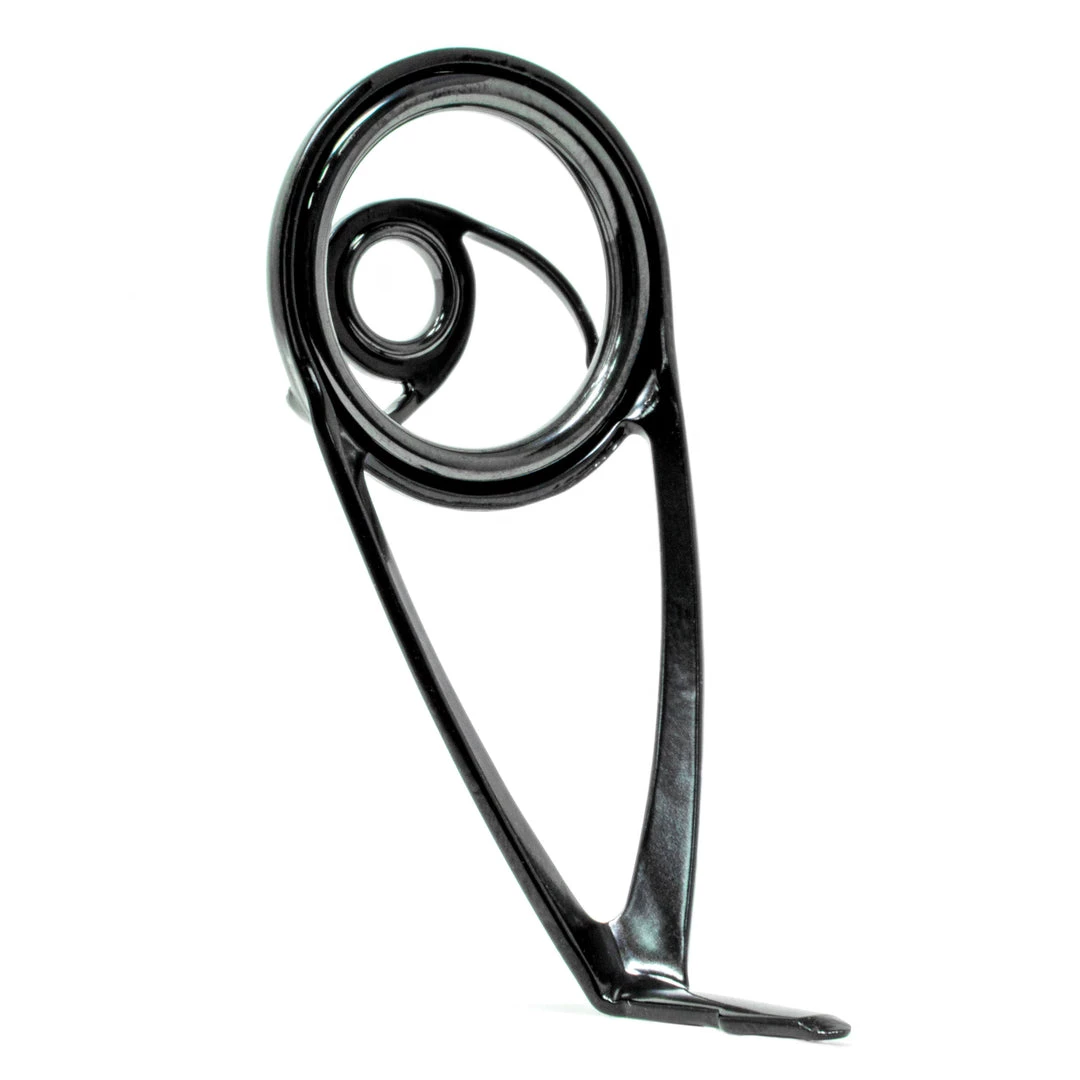

NBMW-25/8	Stripper Guide	Nanolite	36.90 mm	42.62 mm	53.50 mm	6.90 gm	19.45 mm	17.60 mm
NCMW-25/8	Stripper Guide	Nanolite	36.90 mm	42.62 mm	53.50 mm	7.00 gm	19.45 mm	17.60 mm
NOIMW-25/8	Stripper Guide	Nanolite	36.90 mm	42.62 mm	53.50 mm	6.80 gm	19.45 mm	17.60 mm
DBMW-25/8	Stripper Guide	Duralite	37.30 mm	42.94 mm	53.50 mm	7.30 gm	18.65 mm	17.60 mm
DCMW-25/8	Stripper Guide	Duralite	37.30 mm	42.94 mm	53.50 mm	7.40 gm	18.65 mm	17.60 mm

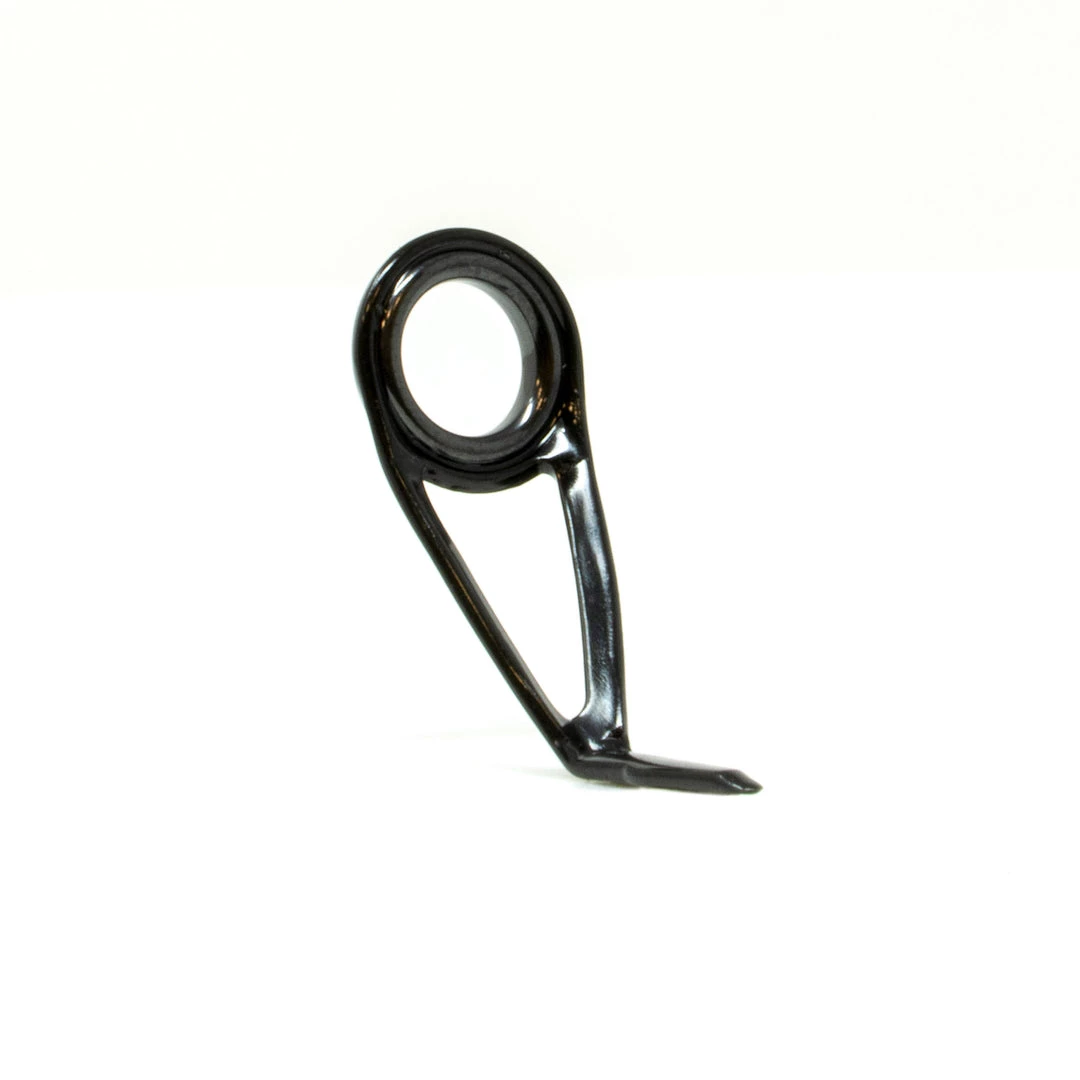

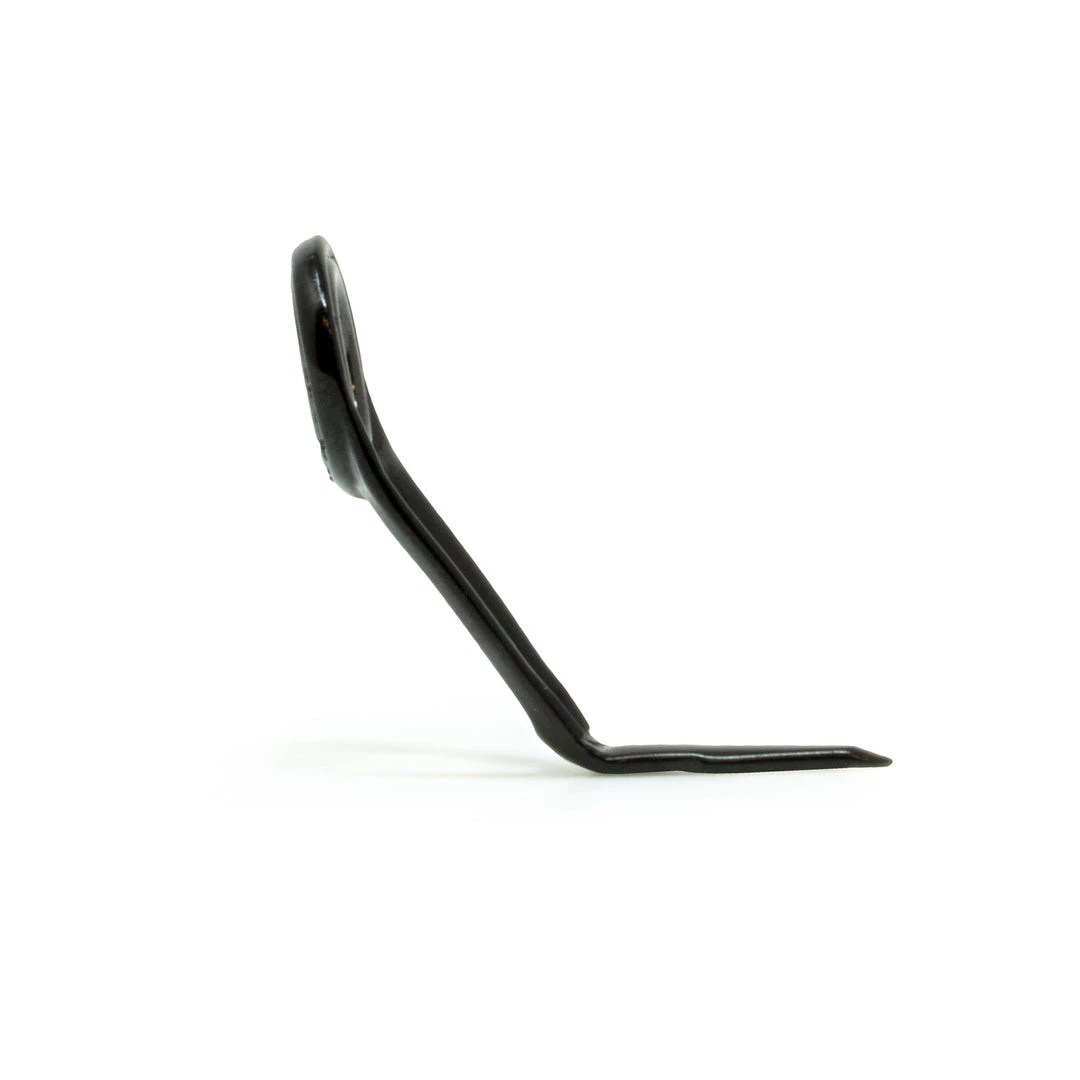

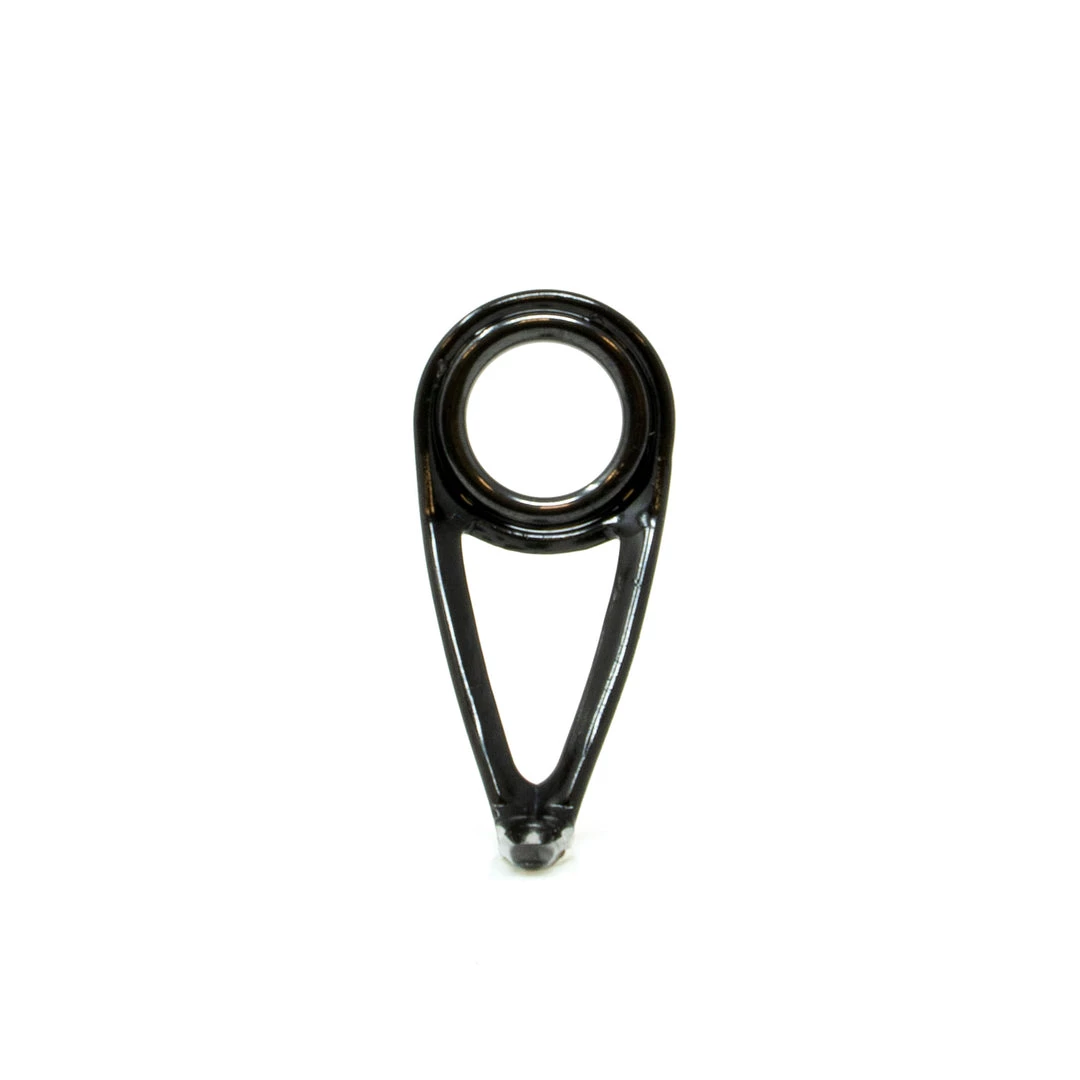

NBMW-8T	Transition Guide	Nanolite	11.60 mm	17.40 mm	19.40 mm	0.70 gm	5.80 mm	11.00 mm
NCMW-8T	Transition Guide	Nanolite	11.60 mm	17.40 mm	19.40 mm	0.80 gm	5.80 mm	11.00 mm
NOIMW-8T	Transition Guide	Nanolite	11.60 mm	17.40 mm	19.40 mm	0.40 gm	5.80 mm	11.00 mm
DBMW-8T	Transition Guide	Duralite	12.58 mm	18.18 mm	19.40 mm	0.80 gm	5.60 mm	11.00 mm
DCMW-8T	Transition Guide	Duralite	12.58 mm	18.18 mm	19.40 mm	0.80 gm	5.60 mm	11.00 mm

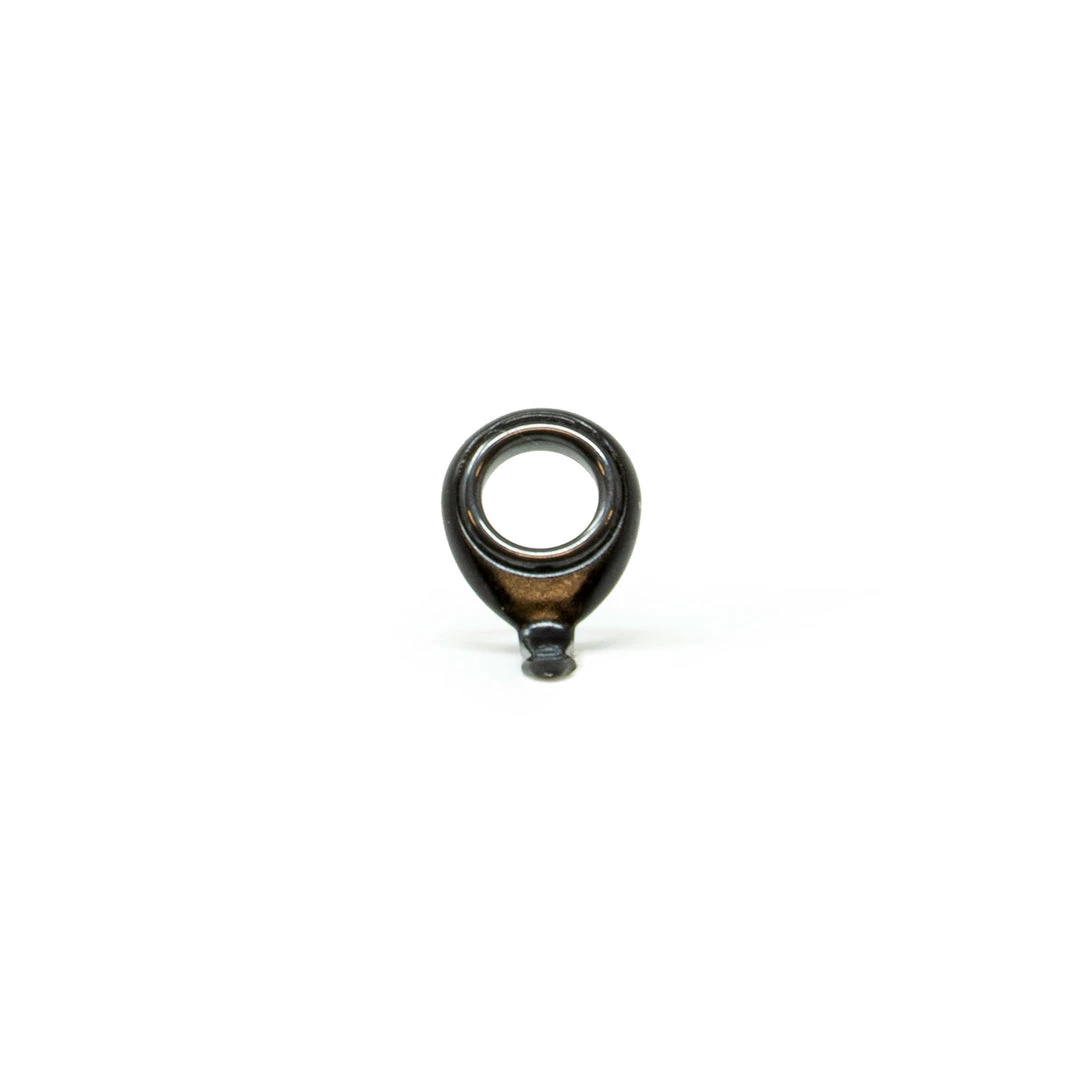

NBMW-6	Running Guide	Nanolite	4.25 mm	8.70 mm	9.50 mm	0.30 gm	4.45 mm	6.60 mm
NCMW-6	Running Guide	Nanolite	4.25 mm	8.70 mm	9.50 mm	0.30 gm	4.45 mm	6.60 mm
NOIMW-6	Running Guide	Nanolite	4.25 mm	8.70 mm	9.50 mm	0.20 gm	4.45 mm	6.60 mm
DBMW-6	Running Guide	Duralite	4.18 mm	8.38 mm	9.50 mm	0.30 gm	4.20 mm	6.60 mm
DCMW-6	Running Guide	Duralite	4.18 mm	8.38 mm	9.50 mm	0.30 gm	4.20 mm	6.60 mm
