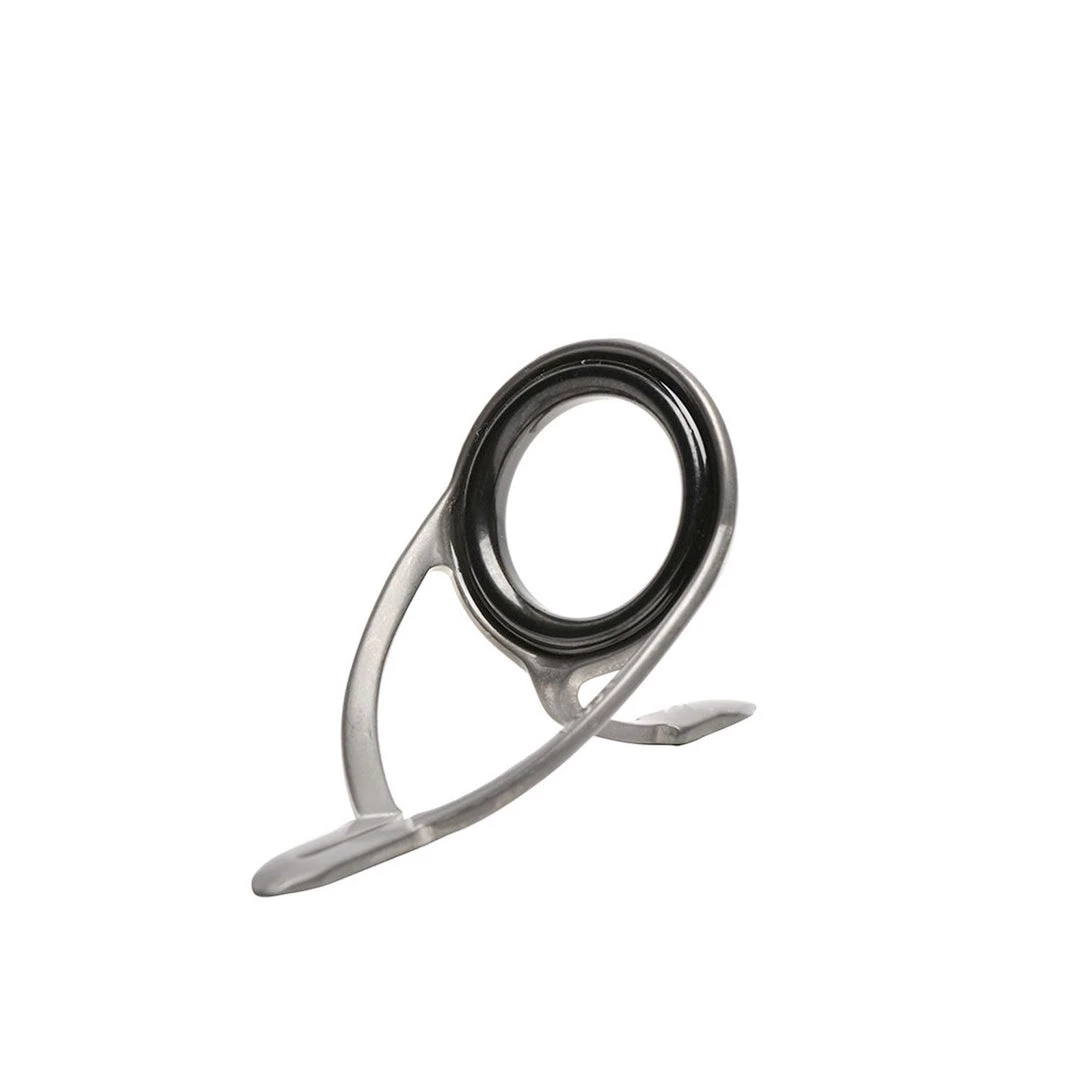

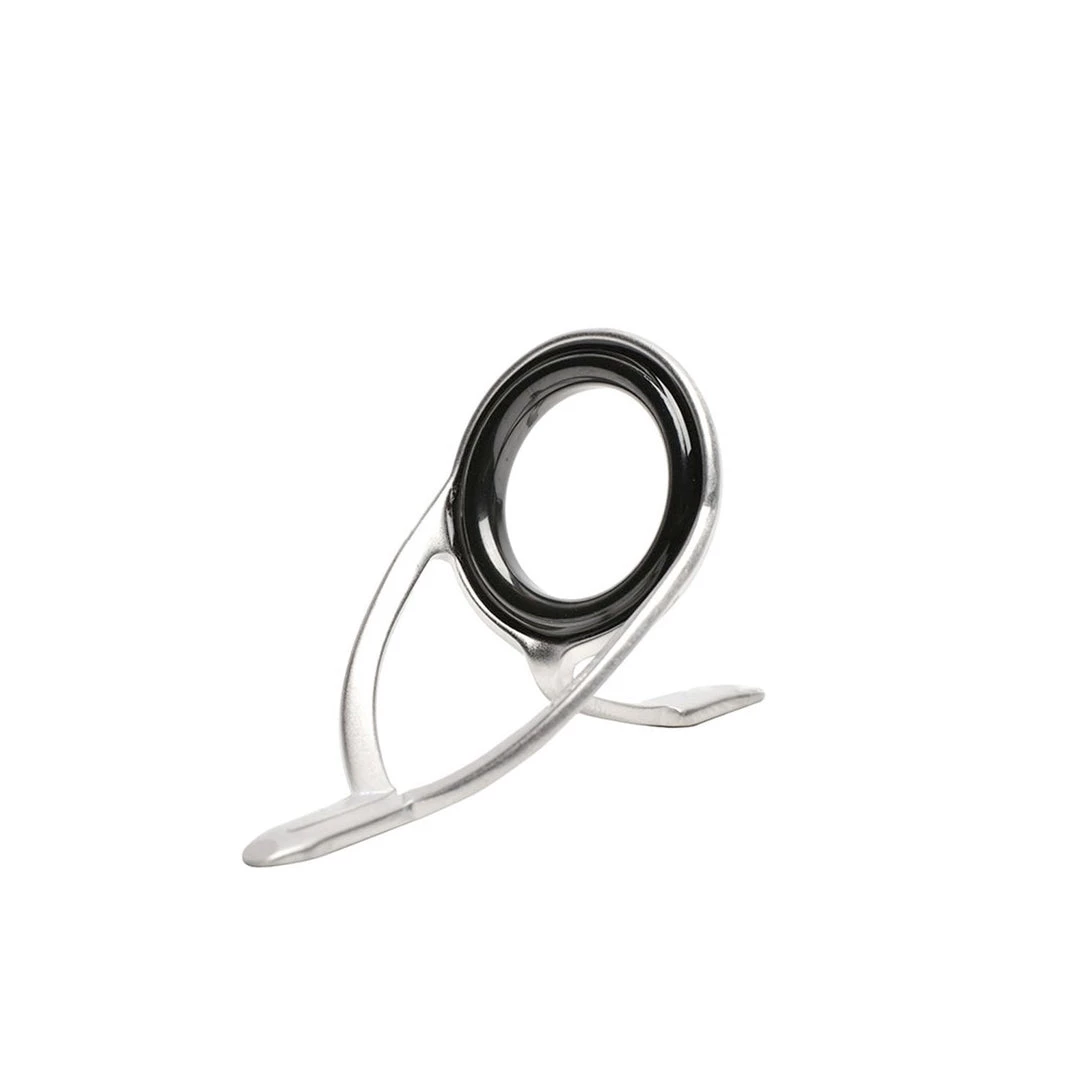

Fuji K-Series Double-Foot Casting & Spinning Guides Model KW – Alconite

KW Double-Foot guides are part of Fuji’s flagship K-Series guide selection, now the most complete and advanced guide “family” in the Fuji arsenal. Builders continue to move to K-Series guides for their tangle-free operation, in- credible frame strength, superb ring retention and striking good looks. Using K-Series frames, factories and custom builders alike can find what they need from ultra-light high frame strippers to new RV surf rod guides. K-Series includes products for both conventional and micro-rod builds, casting or spinning in a huge variety of rings and frame finishes. Designed for use with NGC, COF or Modified COF layouts.

Note: The 12M and 10M are new listings for use with the new RV Double-Foot Surf Guide.

Heavy Duty Layout: KW Reduction > KW Runners

Medium Duty Layout: KW Reduction > KB Choke +2 more > KT Runners

Titanium Performance at Stainless Prices

Corrosion Control (CC/BC) Now Available!. Fuji guide frames are now offered with a new corrosion control matte finish that provides up to 7 times more corrosion control resistance than standard Stainless Steel – and look amazing! The new CC finish is available exclusively in all K-Series SiC, Alconite, and the all new FazLite rings.

Specifications

Size	Height (mm)
5	7.3
5.5	7.6
6	8.7
7	9.7
8	12.3
10	15.2
10M	18.1
12	17.4
12M	25.6
16	21.2
20	27.9
25	42.4
30L	50.4
30	61.2
40L	60.2
40	80.4.0
50	86.6
